GitBridge: Enterprise-Grade Git Migration and Repository Synchronization Desktop Suite
GitBridge is a cross-platform desktop application designed to streamline the migration, mirroring, and synchronization of Git repositories between distinct hosting accounts. Built using Electron, GitBridge eliminates the complexity of manual command-line repository transfer workflows by providing an intuitive graphical user interface backed by a secure, robust execution engine.
Executive Summary
Software teams frequently face the challenge of migrating source code repositories between different hosting providers, corporate organizations, or personal and professional accounts. Traditional methods require multiple terminal commands, manual SSH key swaps, and temporary file management. This process is error-prone and risks exposing sensitive credentials.
GitBridge solves these pain points by orchestrating full, lossless repository transfers in a single click. It preserves the complete history, including all branches, tags, and commits, while managing encrypted SSH credentials in memory.
Core Product Capabilities

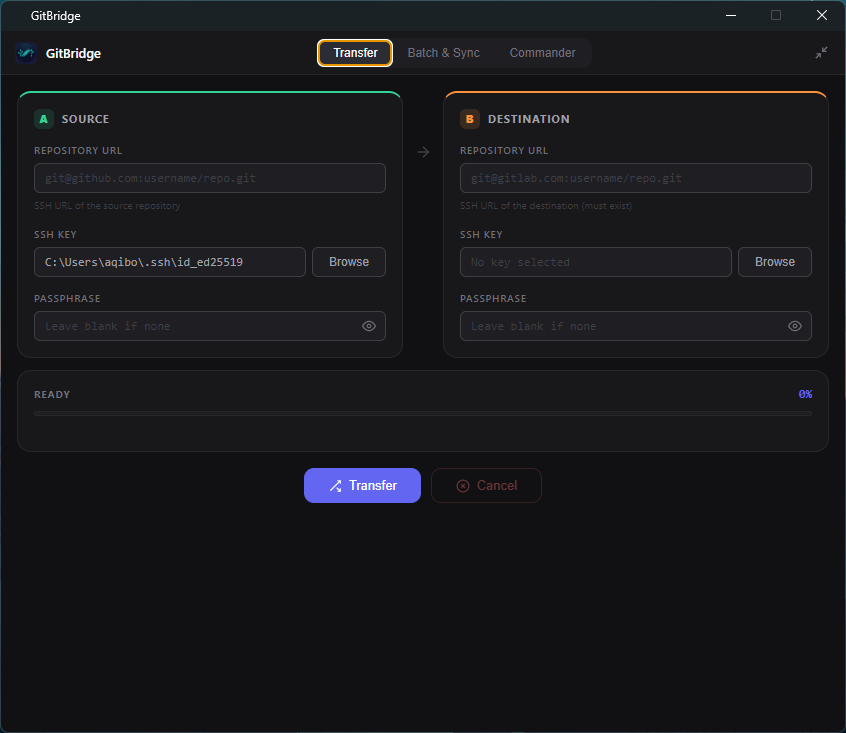

1. Lossless Repository Mirroring
GitBridge executes precise mirroring operations to replicate repository states across destination hosts.
- Full Fidelity Mirroring: Replicates all Git refs, tags, branches, and commit histories to ensure the destination repository is an exact clone of the source.
- Automated Pipeline: Automates the complete clone-redirect-push-cleanup cycle, reducing manual overhead and human error.
- Transient Storage Management: Automatically isolates the temporary cloned files in a randomized system directory and ensures complete deletion immediately after the push operation, regardless of success or failure.
2. Multi-Account SSH Authentication
The application natively handles complex authentication schemes across separate source and destination platforms.
- Dual-Key Orchestration: Allows distinct SSH private keys to be defined for the source and destination remotes in a single execution.
- Secure Passphrase Injection: Interacts with encrypted SSH keys (including ed25519 and RSA) by generating transient, single-use script wrappers that communicate passphrases directly to OpenSSH via the SSH_ASKPASS protocol.
- Zero-Persistence Credential Model: Keys are referenced in-place and passphrases reside strictly in memory during the execution lifecycle. No credentials or credentials-derived keys are written to persistent configurations.

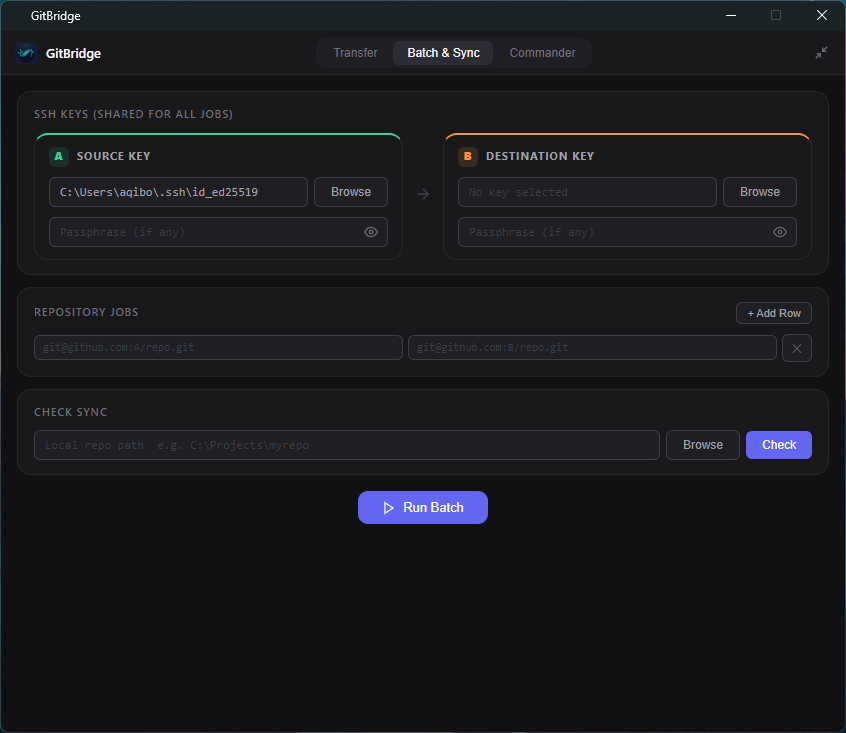

3. Bulk Synchronization Dashboard
For organizations managing multiple repositories, GitBridge offers a centralized control panel to maintain alignment between primary and mirror repositories.
- Cross-Account Sync Status Tracking: Compares commits and HEAD hashes across two hosting accounts to detect divergence.
- Batch Transfer Queue: Allows users to queue up out-of-sync repositories and perform batch transfers sequentially with real-time feedback.
- Granular Diff Views: Displays pending commits and chronological differences before initiating synchronization.

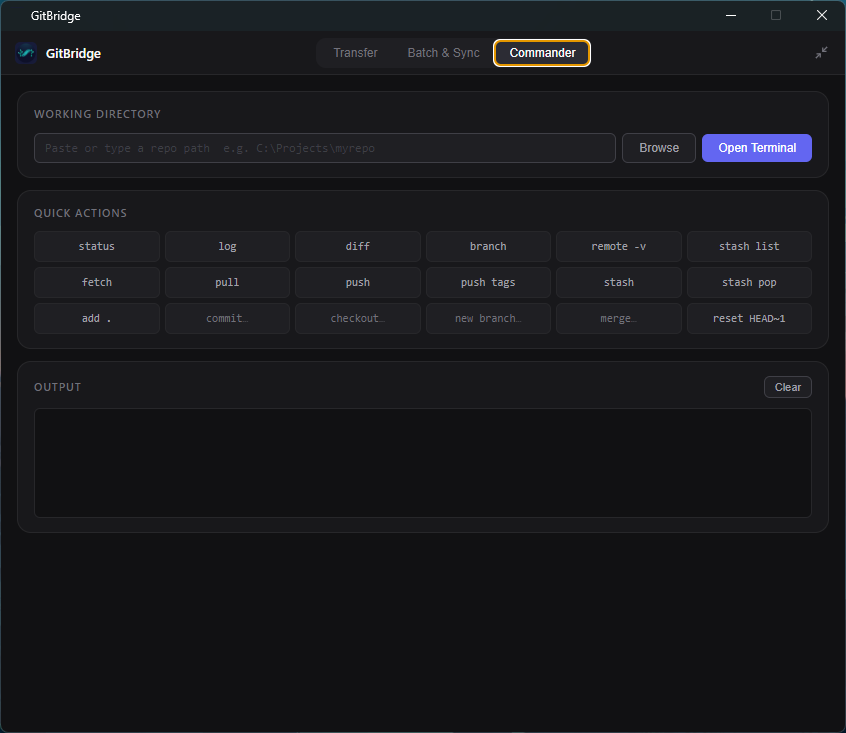

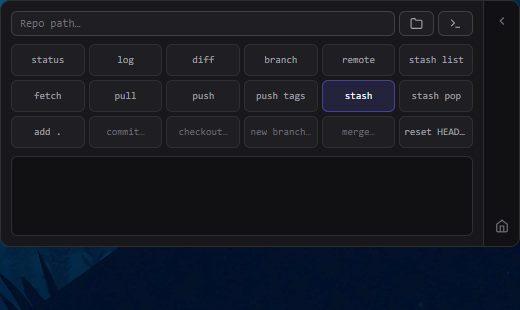

4. Mini Git Commander (Floating Widget)
To assist with daily development cycles, GitBridge includes a compact, helper widget designed to float above other applications.
- Always-On-Top Integration: Remains visible on the desktop, giving immediate access to Git status without switching windows or opening a CLI.
- One-Click Commands: Simplifies standard Git operations into simple button actions, including pull, fetch, stage, commit, push, checkout, stash, and reset.
- Safety Verification: Implements confirmation prompts for potentially destructive actions, such as branch resets or stashes, to prevent accidental data loss.
Technical Architecture
GitBridge leverages a multi-process architecture to decouple the user interface from low-level Git and SSH processes.
- Renderer Process (UI): Written in semantic HTML, CSS, and JavaScript. It runs within a secure sandboxed environment with Node.js integration disabled.
- Main Process (Backend): Orchestrates OS-level interactions, file management, and process execution. It communicates with the Renderer via a secure IPC bridge.
- Low-Level Executor: Spawns system Git binaries asynchronously, parsing stdout and stderr in real-time to provide precise progress updates and capture descriptive error messages.
Process Flow Diagram
[Renderer Process (UI Input)]
│
│ IPC Invoke (Secure Context Bridge)
▼
[Main Process (Node.js Controller)]
│
├─► Validate SSH URLs and Key File Paths
├─► Write temporary SSH_ASKPASS script to Temp Directory
│
▼
[Spawn Process: git clone --mirror]
│
├─► Set GIT_SSH_COMMAND & SSH_ASKPASS environment variables
├─► Parse stderr for real-time progress indicators
│
▼
[Spawn Process: git remote set-url]
│
▼
[Spawn Process: git push --mirror]
│
▼
[Finally Block Cleanup]
│
├─► Delete SSH_ASKPASS script
└─► Recursively remove temporary mirror clone directory
Security and Compliance Framework
GitBridge was engineered from the ground up to respect enterprise security constraints and protect intellectual property.
- Command Injection Prevention: Spawns Git operations using structured argument arrays rather than concatenating strings in shell terminals.
- Host Verification: Automatically handles target host verification while remaining resilient to network disconnects.
- Sandbox Environment: Features active context isolation and sandboxing, preventing raw UI layers from interacting with the host filesystem.
- Input Validation: Sanitizes and validates Git URLs against strict Regular Expression schemas before passing them to CLI commands.
Supported Environments and Hosts
Supported Operating Systems
- Microsoft Windows: Windows 10 (21H2 or later) and Windows 11.
- macOS: macOS Catalina or later (dmg packages).
- Linux: Major distributions supporting AppImage format.
Supported Version Control Platforms
GitBridge is compatible with any Git repository provider that supports SSH public-key authentication:
- GitHub and GitHub Enterprise
- GitLab (SaaS and Self-Managed)
- Bitbucket (Cloud and Data Center)
- Microsoft Azure DevOps
- Amazon Web Services (AWS) CodeCommit
- Standard Self-Hosted Git Servers
Prerequisites
To run GitBridge, the host system must meet the following configuration requirements:
- Git CLI: Installed and accessible in the system environment PATH.
- OpenSSH Client: OpenSSH version 8.4 or higher must be installed to support mandatory force authentication triggers (
SSH_ASKPASS_REQUIRE=force). - SSH Credentials: Pre-configured private keys generated and authorized on the respective source and destination hosting platforms.
